IDD3X215 New Release

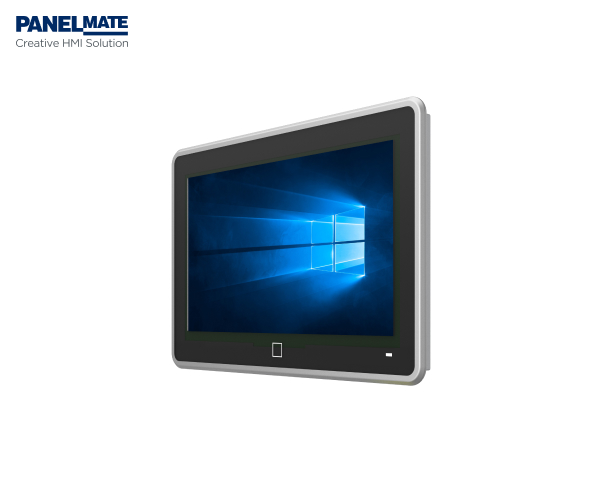

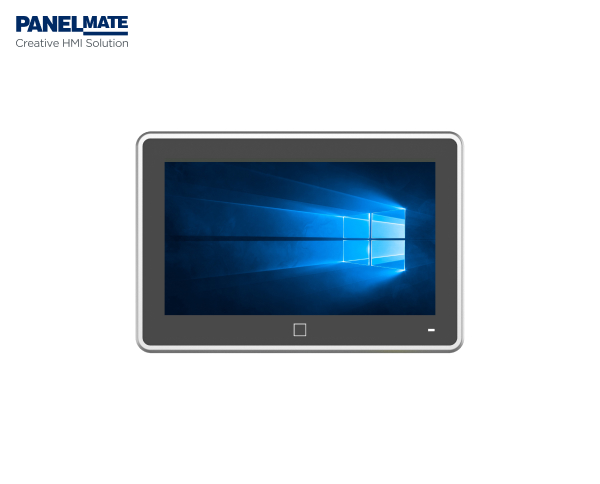

21.5 inch Industrial Stainless Steel Monitor
Product Features

·Display size：15.6"，21.5"

·Front panel：304 stainless steel

·Front panel/Rear：IP65/IP20

·Single point resistive touchscreen，Multi-touch capacitive screen，Tempered glass

·OS:Win7，Win8，Win10，Win11，Linux，etc

·DC 9~36V

·Interface:DVI，HDMI，VGA，2xUSB

Document Download
More Document Download

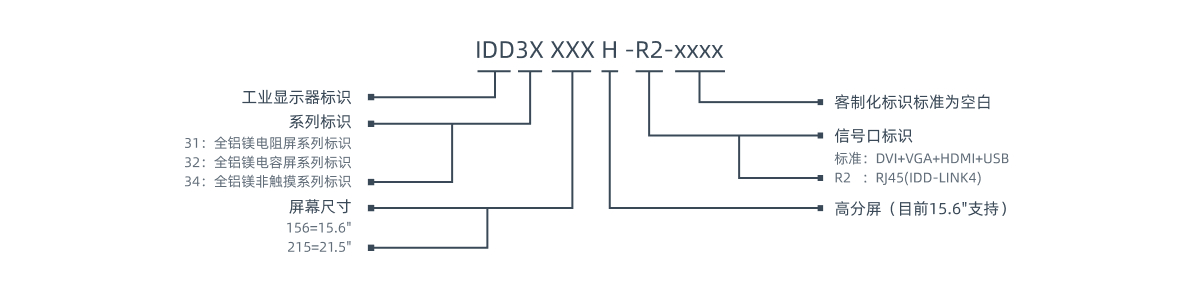

Naming Rules Specifications
Routine
  • Housing
    Front panel：304 stainless steel
  • Mounting
    Embedded

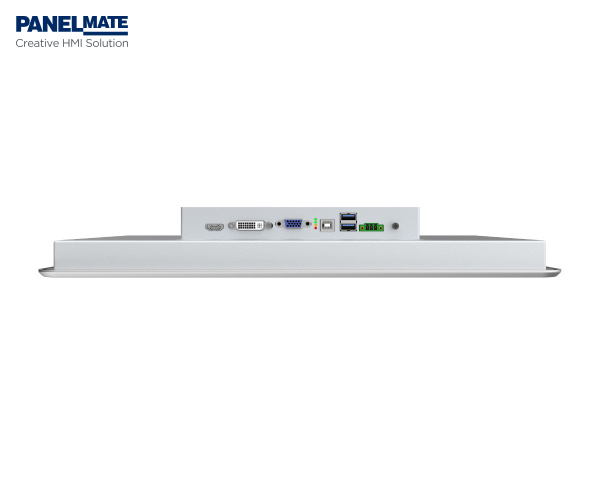

  • Rear I/O
    VGA & DVI & HDMI & USB
Power
  • Input Voltage
    Phoenix terminal：DC 9~36V input
  • Power
    20W
Physical
  • Dimension (WxHxD)
    554.9mm x 360mm x 57mm（21.85" x14.17" x 2.24"）
  • Open Size (WxH)
    532mm x337mm（20.94" x113.27"）
LCD
  • Display type
    21.5" FHD TFT
  • Resolution
    1920 x 1080
  • Colors
    16.7M
  • Active Area (WxH)
    476.64mm x 268.11mm（18.77" x 10.56"）
  • Backlight
    LED
  • MTBF(Hour)
    30000hrs
  • Pixel Pitch（HxV）
    0.24825 x 0.24825
  • Luminance(cd/m2)
    250cd / m2
  • Contrast Ratio
    3000:1
  • Viewing Angle
    (L)89 / (R)89 / (U)89 / (D)89
Touchscreen
  • Touch Type
    Single point resistive touchscreen & Multi-point capacitive touchscreen & Non-touch screen
  • Light Transmission
    >85%
  • Controller
    USB
  • Driver Support
    Windows 7, Windows 8, Windows 10/11, Linux, etc
  • Multi-touch
    10 points
  • Surface Hardness
    Resistive touchscreen: Mohs' Number >= 3H;Capacitive touchscreen: Mohs' Number 7H
Environment
  • Operating Temperature
    0 ~ 50℃
  • Storage Temperature
    -20 ~ 60℃
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    Front panel IP65 compliant
