Panel32156-XK New Release

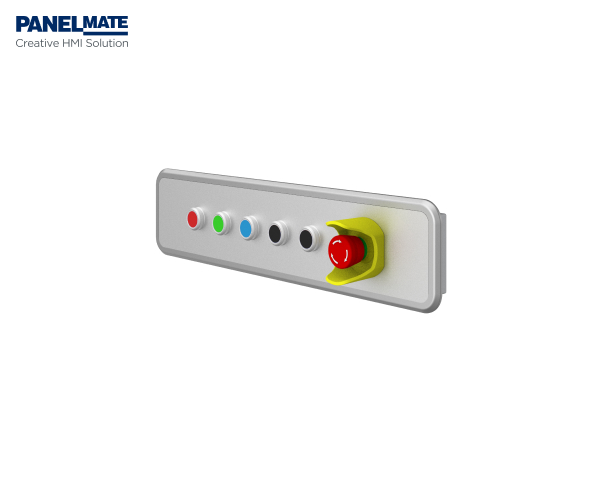

15.6 inch Stainless Steel Control Panel
Product Features

·Compatible product：PanelMate Embedded industrial stainless steel monitor

·Front panel material：304 stainless steel

·Front panel/Rear：IP65 / IP20

·Button can be customized，standar 5 buttons

·Embedded stainless steel design, uniform appearance, and easy to clean and maintain

Document Download
More Document Download
Naming Rules Specifications
Routine
  • Housing
    Front panel：304 stainless steel
  • Mounting
    Embedded
I/O
  • Standard button
    1 x emergency stop / 1 x start / 1 x stop / 1 x reset / 2 x spare button
Physical
  • Dimension (WxHxD)
    413.2mm x 92.7mm x 53mm（16.27" x 3.65" x 2.09"）
  • Open Size (WxH)
    397mm x 73mm （15.63" x2.87"）
Environment
  • Relative Humidity
    5~95%(Non condensation)
  • Shock
    Operating 10G peak acceleration(11 ms duration), follow IEC 60068-2-27
  • Vibration
    Operating Random Vibration Test 5~500Hz,1Grms@with HDD;2Grms@with SSD,follow IEC 60068-2-64
  • EMC
    CE/FCC Class A
  • Front Panel Protection
    Front panel IP65 compliant
